High Voltage 10KV Insulation Resistance Test Equipment For Generators 0.01MΩ~1000GΩ

WUHAN FANKE HAIWO HIGH VOLTAGE TECHNOLOGY CO.,LTD.

High Voltage 10KV Insulation Resistance Test Equipment For Generators 0.01MΩ~1000GΩ

Brand Name : Fanke High-Voltage

Model Number : UT 515A

Certification : ISO9001

Place of Origin : China

MOQ : One unit

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10units/month

Delivery Time : 10 work days

Packaging Details : Export standard wooden case with fumigation free

Usage : Insulation resistance test and analyzing

Special for : Large Transformers, Generators, High-voltage Motors

Ouput Voltage : 250V、500V、1000V、2500V、5000V、10kV

Range : 0.01MΩ~1000GΩ

Short Circuit Current : No less than 3mA

Special functions : PI/DAR measurements, DC /AC Voltage output for hipot test

Contact Now

10KV Insulation Resistance Tester , For Large Transformers, Generators, High-voltage Motors Test

I. Product Introduction :

Insulation resistance tester, also known as megohmmeter, is used for testing insulation resistance. UT515A tester has LCD large-screen backlight display, data storage, data review, alarm, automatic shutdown and other functions. At the same time, it also has the function of measuring AC/DC voltage absorption ratio and polarization index. The whole machine has wide measuring range, high resolution, easy operation, convenient carrying, accurate, reliable, stable performance and strong anti-interference ability. Moreover, it has anti-vibration, dust-proof and moisture-proof structure. It is an indispensable measuring instrument for telecom, electric power, meteorology, computer room, oil field, electromechanical installation and maintenance, and industrial enterprise departments that use electricity as industrial power or energy. Rugged, reliable and easy to use, the user's work is more effective.

UT515A testers can measure insulation resistance of large transformers, generators, high-voltage motors and more. it can also measure PI, DAR and AC/DC hipot functions. Measured data can then be analyzed through PC software. UT515A can produce test voltage up to 10kV on insulation resistance measurement. AC voltage for hipot test is up to 750V, DC voltage for hipot test is up to 1000V,

II. Main Features :

1. Support insulation test from 0.01MΩ to 1000GΩ;
2. Integrated 6 voltage levels, 250V, 500V, 1000V, 2500V, 5000V, 10kV;
3. With conventional AC and DC voltage measurement function;
4. 500 sets of data storage, and can be connected to the host computer via USB;
5. Professional and efficient, one-button test polarization index and medium absorption ratio;
6. LCD backlight large screen display to ensure the efficiency of the user in the dark;

III. Main Technical Data




Feature Output voltage for insulation resistance Measurement range Accuracy Resolution
Insulation resistance measurement 250V(±10%) 0~10MΩ ±3%rdg±5dgt 0.01MΩ
10~100MΩ 0.1MΩ
100~1000MΩ 1MΩ
1G~10GΩ ±5%rdg±5dgt 0.01GΩ
500V(±10%) 0~10MΩ ±3%rdg±5dgt 0.01MΩ
10~100MΩ 0.1MΩ
100~1000MΩ 1MΩ
1G~10GΩ ±5%rdg±5dgt 0.01GΩ
1000V(±10%) 0~20MΩ ±3%rdg±5dgt 0.01MΩ
20~200MΩ 0.1MΩ
200~2000MΩ 1MΩ
2G~20GΩ ±5%rdg±5dgt 0.01GΩ
2500V(±10%) 0~2000MΩ ±3%rdg±5dgt 1MΩ
2000MΩ~20GΩ ±5%rdg±5dgt 0.01GΩ
20GΩ~200GΩ ±20%rdg±10dgt 0.1GΩ
5000V(±10%) 0~2000MΩ ±3%rdg±5dgt 1MΩ
2000MΩ~20GΩ ±5%rdg±5dgt 0.01GΩ
20G~200GΩ ±20%rdg±10dgt 0.1GΩ
200G~1000GΩ ±20%rdg±10dgt 1GΩ
10kV(±10%) 0~2000MΩ ±3%rdg±5dgt 1MΩ
2000MΩ~20GΩ ±5%rdg±5dgt 0.01GΩ
20G~200GΩ ±20%rdg±10dgt 0.1GΩ
200G~1000GΩ ±20%rdg±10dgt 1GΩ
DC voltage output for hipot test 0.0V~1000V ±1.5%rdg±3dgt 0.1V
AC voltage output for hipot test 0.0V~750V ±1.5%rdg±3dgt 0.1V
Other basic functions
Display mode 4-digit LCD display , LCD screen 108mm×45mm
Polarization index (PI) and Dielectric absorption ratio (DAR)
Output short circuit current ≥5mA(10kV)
Backlight function
Safety level CAT III 300V
Automatic shut-down
Alarm functions
Exceed measurement range indication functions
Data storage 500 groups
Storage Data checking
Communication interface USB,with measurement software,
Tester dimension 277.2mmX227.5mmX153mm
Power supply 12V Rechargeable Battery

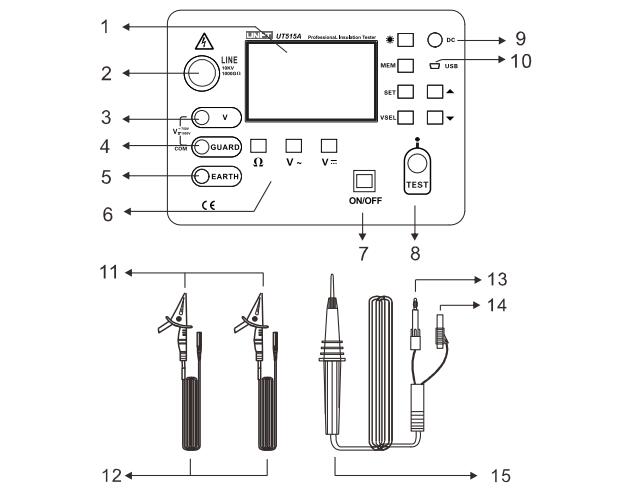

Standard accessories 1pcs of communication cable, 2pcs of one plug test lead to one alligator clip (black and green), 1pcs of two plugs test lead to one alligator clip (red), 1charger, 1 software disk, 1 manual and quality certificate, 1 storage box
Meter net Weight 2720kgs
Meter insulation level ≥50MΩ,AC3KV/50Hz, 1mints
Meets IEC safety standard IEC60101-1; IEC1010-2-31; IEC61557-1,5:2007; IEC60529(IP54)


High Voltage 10KV Insulation Resistance Test Equipment For Generators 0.01MΩ~1000GΩ

High Voltage 10KV Insulation Resistance Test Equipment For Generators 0.01MΩ~1000GΩ
